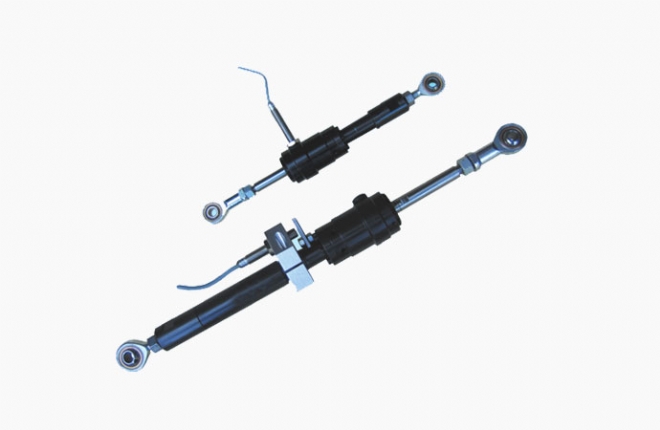

The axial force limiter is equipped with a force linear limiter. Once the calibration force is reached, it is released in both the extrusion and stretching directions. The set force can be adjusted by the nut on the rotating spring and re-engaged for automatic operation. Can be connected with linear motion, and the distance between them is also far.
There is no gap in the axial direction.
Stretch extrusion protection.
After release, it is stretched and squeezed freely.
Precise automatic re-engagement in the disengaged position
The “H size” innovative calibration system provides instantaneous calibration of the equipment. use
Made of fully turned steel, the mechanical strength is particularly high.
No maintenance required, response time is stable and reliable.
On demand
Equipped with drive rod and club head.
A sensor or switch mounted in an axial or radial position. Specific applications can be customized
Meaning configuration.
Surface treatment according to anti-corrosion requirements.
Advantages and characteristics
When the drive is overloaded, protect the shaft from the gearbox.
Protect sliding or other moving parts in the event of accidental impact or collision restrictions.
Protects motion when common jamming or improper configuration occurs.
Protect the finished product from breakage or deformation.
main application
Shaft mounted gearbox.
Cam/eccentric motion.
The thruster and the slide are alternately arranged.
Crank mechanism。
