Brief introduction,
PCCU thin pneumatic clutch brake block is a spring brake block with an integrated clutch and brake structure
In the metal processing, woodworking machinery, paper processing machinery, fiber machinery and other fields have obtained high evaluation.
Features,
1. Small design
The axial dimensions are small, lightweight, low in inertia, and because of the variety of types, it is possible to design without futility.
2. High heat dissipation and exothermic capacity
Because of the superior disc design, high frequency use is possible.
3. Answer quickly
Can play the acceleration, deceleration, smooth movement of superior performance.
4. Time doesn't need adjusting
Because the linkage between the clutch and brake is instantaneous, the torque does not overlap and there is no need to adjust the time.
Easy to repair
Friction plates can be exchanged without decomposing the body.
· construct | action
· the air in the PCCU thin pneumatic clutch brake unit is fed into the air chamber from two air supply ports through the shaft hole, squeezing the piston.
· piston compression brake spring, brake release, clutch connection.
· conversely, if the air is discharged, use the brake spring to actuate the brake and release the clutch.
· for l-type and s-type disks, support the lever to prevent rotation.

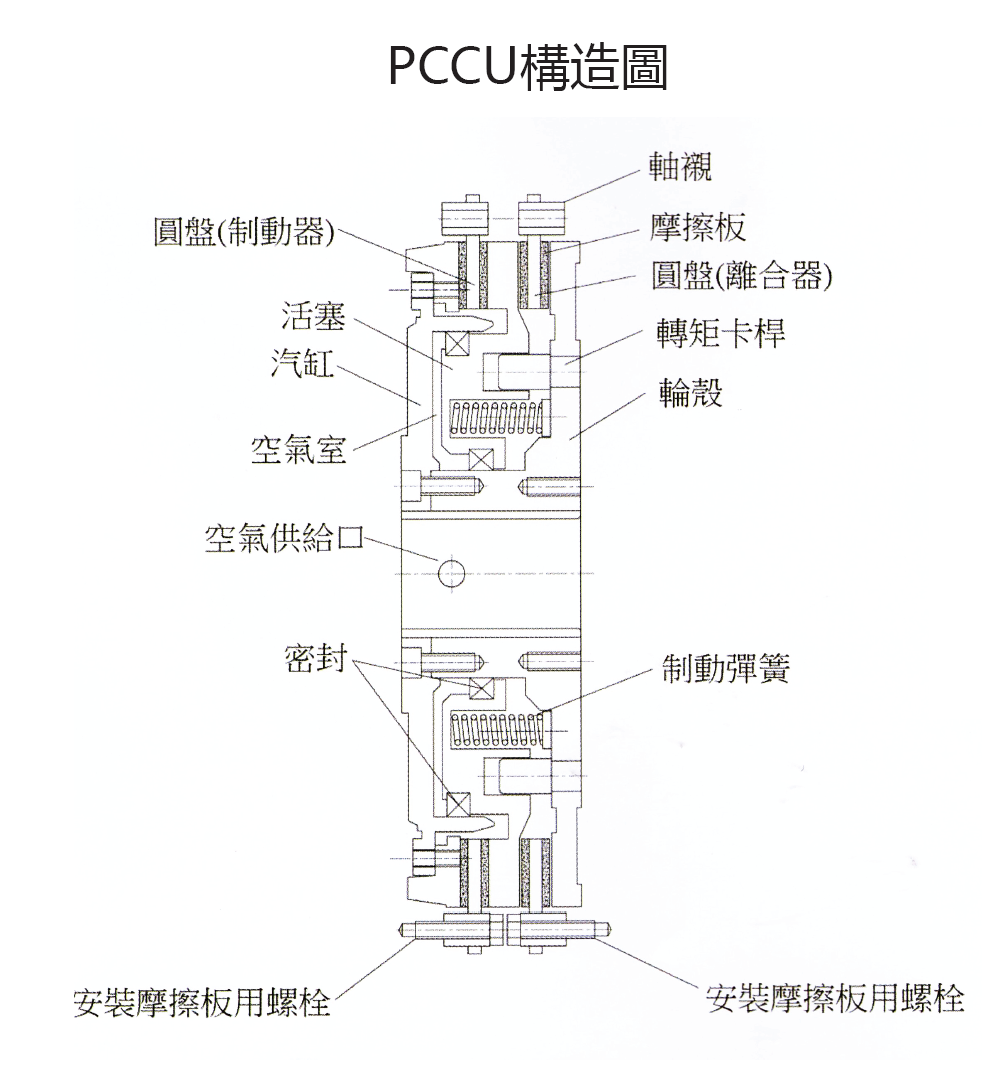

PCCU structure diagram

                                                      Clutch release, brake brake
